ZENMUSE P1
EFFICIENCY TO COVER IT ALL
ZENMUSE P1
EFFICIENCY TO COVER IT ALL
Efficiency through Flexible Full-frame Photogrammetry
- 45 MP Full Frame Sensor
- Global Machanical Shutter | 1/2000 sec. Shutter Speed
- Smart Oblique Capture
- TimeSync 2.0 - Sychronization at The Microsecond Level
- Cover 3km^2 in a Single Flight
- Includes 35mm Lens
- Compatible With DJI Matrice 300 RTK
Zenmuse P1(TI101026)
Starting at: $6,250.00
Call:
1-800-359-0539to get assistance with placing an order

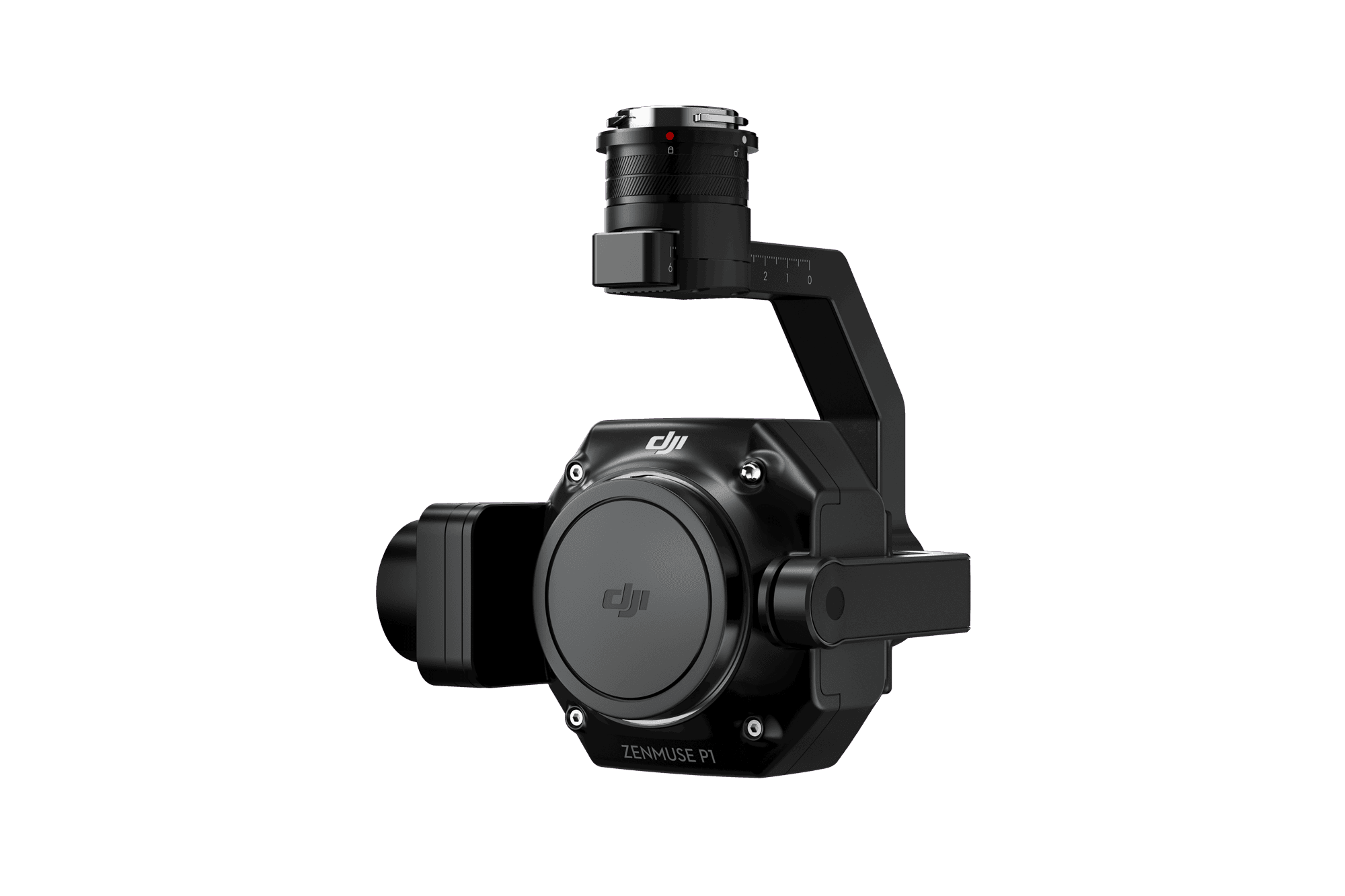

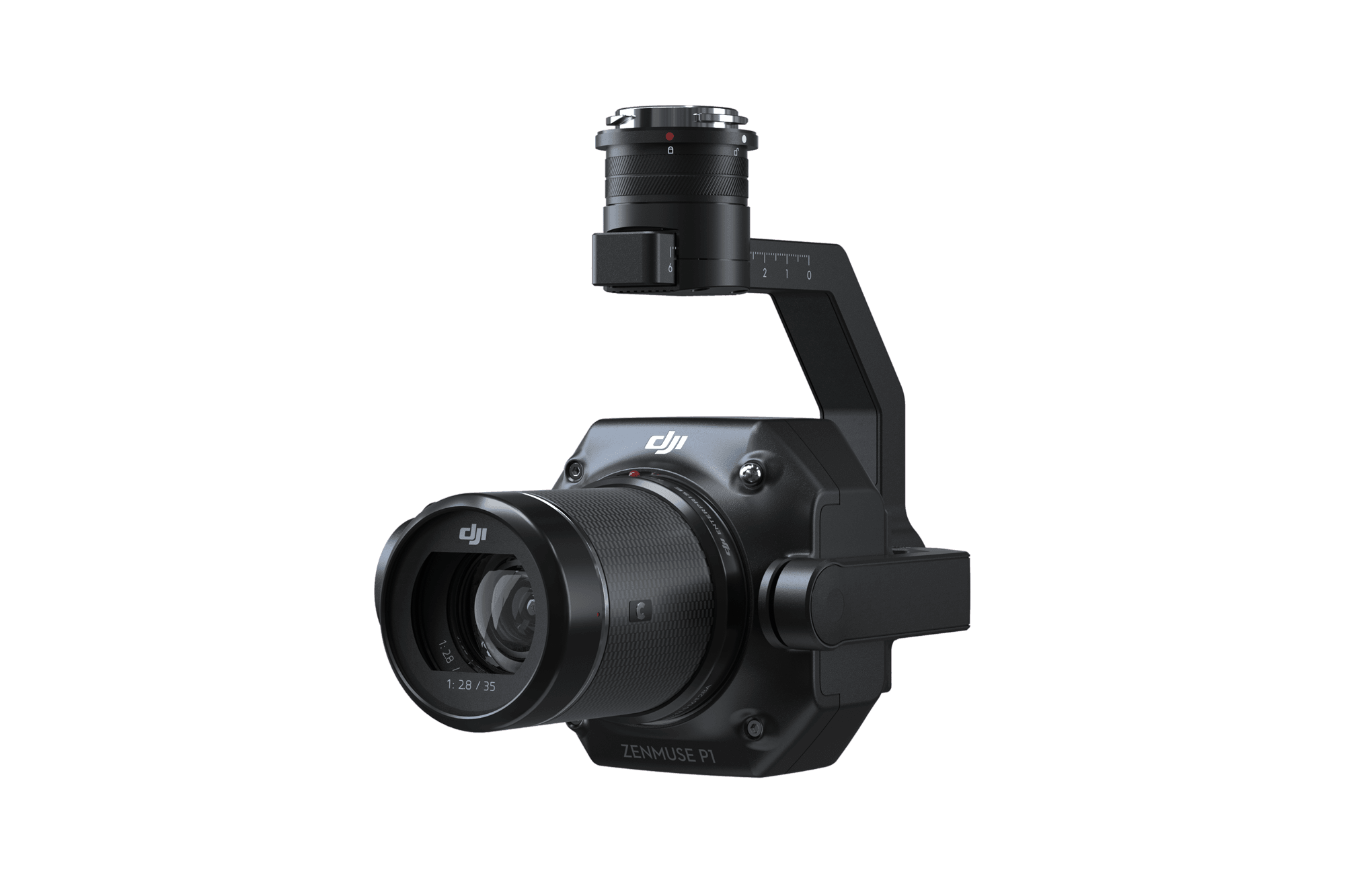

The Zenmuse P1 integrates a full-frame sensor with interchangeable fixed-focus lenses on a 3-axis stabilized gimbal. Designed for photogrammetry flight missions, it takes efficiency and accuracy to a whole new level.
DJI SHIELD INCLUDED
45 MP Full-frame Sensor
The P1 is the new benchmark for aerial photogrammetry with its full-frame 45MP sensor, global mechanical shutter, and 0.7 second trigger speed. Paired with the Matrice 300 RTK and D-RTK Mobile Station, the P1 is unmatched in accuracy and efficiency.
Smart Oblique Capture
Create 3D models more efficiently, with greater accuracy, using the P1’s Smart Oblique Capture mode. During the mission, the gimbal will automatically rotate to take photos at multiple angles giving you all of the photos needed to created detailed 3D models.

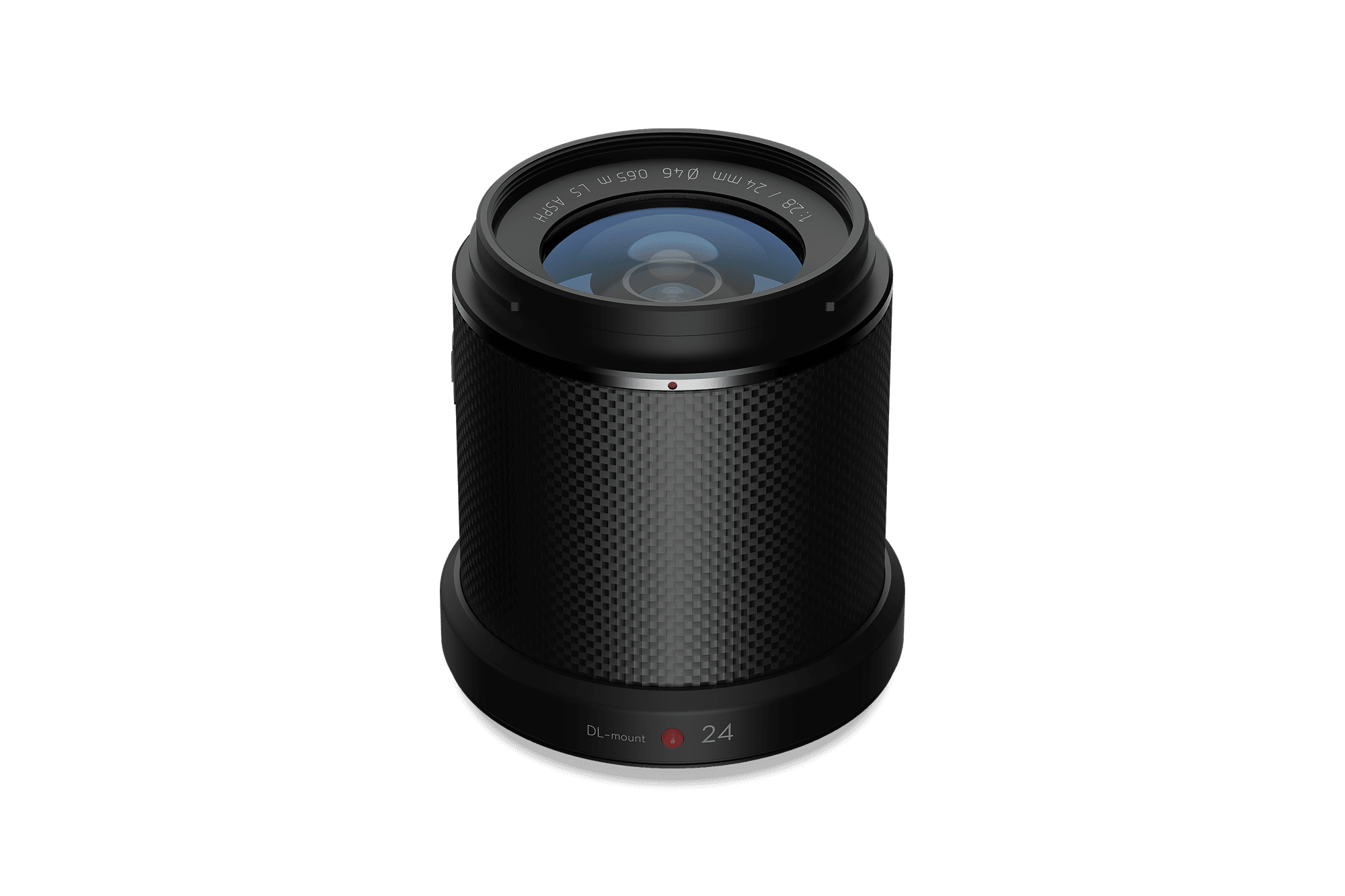

Multiple Fixed-focus Lens Options
The P1 has three lens options available including a 24mm, 35mm, and 50mm fixed-focus lens.
How To Calibrate The DJI Zenmuse P1 Camera
Zenmuse P1 Specs
General
Dimensions
198×166×129 mm
Weight
Approx. 800 g
Power
20W
IP Rating
IP4X
Supported Aircraft
Matrice 300 RTK
Operating Temperature Range
-20° to 50° C (-4° to 122° F)
Storage Temperature Range
-20° to 60° C (-4° to 140° F)
Absolute Accuracy
Horizontal: 3 cm, Vertical: 5 cm * * Using Mapping Mission at a GSD of 3 cm and flight speed of 15 m/s, with an 75% front overlap rate and a 55% side overlap rate.
Camera
Sensor
Sensor size (Still): 35.9×24 mm (Full frame) Sensor size (Max video recording area): 34×19 mm Effective Pixels: 45MP Pixel size: 4.4 μm
Supported Lenses
DJI DL 24mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 84° DJI DL 35mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 63.5° DJI DL 50mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 46.8°
Supported SD Cards
SD: UHS-I rating or above; Max capacity: 512 GB
Storage Files
Photo / GNSS Raw Observation Data/ Image Log File
Photo Sizet
3:2 (8192×5460)
Operation Modes
Photo, Video, Playback
Minimum photo interval
0.7 s
Shutter Speed
Mechanical Shutter Speed: 1/2000*-1 s Electronic Shutter Speed: 1/8000-1 s *Aperature value no larger than f/5.6
Aperture Range
f/2.8-f/16
ISO Range
Photo: 100-25600 Video: 100-25600
Gimbal
Stabilized System
3-axis (tilt, roll, pan)
Angular Vibration Range
±0.01°
Mount
Detachable DJI SKYPORT
Mechanical Range
Tilt: -130° to +40°; Roll: -55° to +55°; Pan: ±320°e
The DJI Zenmuse P1
The New Benchmark for Aerial Surveying
Inquire Now
Fill out the form below or give us a call regarding the P1!
