MAVIC 2 ENTERPRISE ADVANCED
DUAL IMAGING, REIMAGINED
MAVIC 2 ENTERPRISE ADVANCED
DUAL IMAGING, REIMAGINED
Expand Your Vision with Advanced Dual-cameras
- 640 x 512 High Resolution Thermal Imaging
- Dual Vision
- DJI Smart Controller
- Modular Accessories
Mavic 2 Enterprise Advanced(TI100952)
Starting at: $6,500.00
Call:
1-800-359-0539to get assistance with placing an order
The Mavic 2 Enterprise Advanced is DJI's latest commercial drone model. Somehow DJI was able to pack even more features into the same Mavic 2 Enterprise air frame, and create an even more versatile platform. The Advanced now has a high resolution 640 x 512 thermal imaging camera paired with a regular RGB camera capable of 48MP stills. In addition, to the new and improved camera system, the M2EA has a detachable RTK module that can be used with your NTRIP account or ground station.
BUY NOWDJI SHIELD INCLUDED
640 x 512 High Resolution Thermal Imaging
The Mavic 2 Enterprise Advanced is one of the most compact high resolution thermal imaging drones. The thermal resolution is 640 x 512 with a 30Hz refresh rate, making it ideal for search and rescue, law enforcement, firefighting, and inspection work.
Dual Vision
In addition to the thermal imaging sensor, the 3-axis stabilized gimbal carries an RGB visual camera. Together you can view both camera feeds at the same time, side by side, to gain complete awareness of the situation.

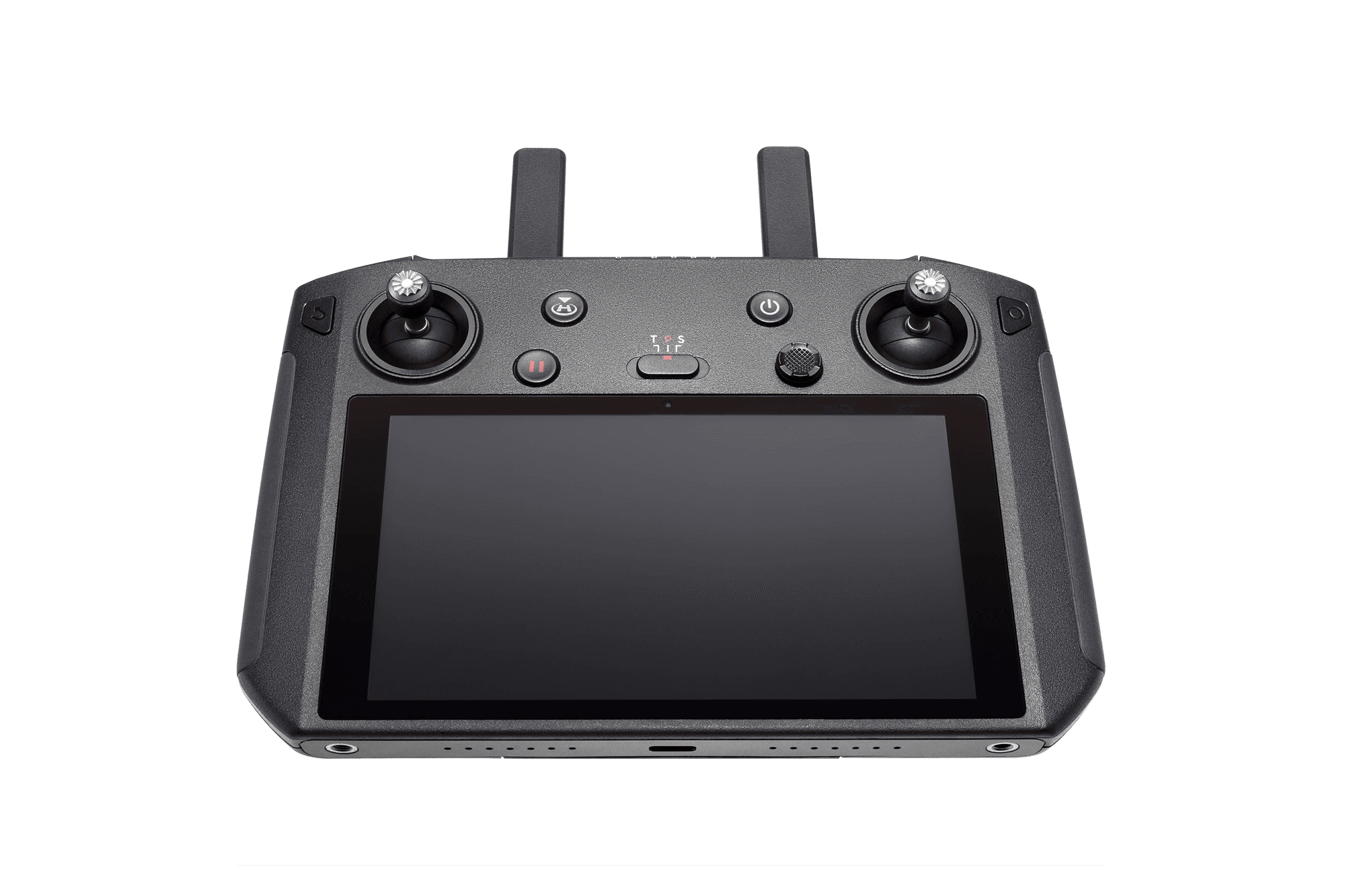

DJI Smart Controller
The Smart Controller maximizes your outdoor flying experience by providing the pilot with a 5.5-inch built-in screen with a clear, bright display that is visible even in direct sunlight.
Modular Accessories
Included with the Mavic 2 Enterprise Advanced are 3 modular accessories: a spotlight, speaker, and beacon. Available separately is the RTK module.
Mavic 2 Enterprise Advanced Thermal Video
Watch as Mike from Terrestrial Imaging flys the Mavic 2 Enterprise Advanced, recording the feed from the 640 x 512 resolution thermal sensor.
Mavic 3 Thermal Vs Mavic 2 Enterprise Advanced
Mavic 2 Enterprise Advanced Specs
Aircraft
Takeoff Weight (Without Accessories)
909g
Max Takeoff Weight
1100 g
Dimensions (L×W×H)
Folded: 214×91×84mm Unfolded: 322×242×84mm Unfolded+Spotlight: 322×242×114mm Unfolded+Beacon: 322×242×101mm Unfolded+Speaker: 322×242×140mm Unfolded+RTK Module: 322x242x125mm
Diagonal Distance
354 mm
Max Ascent Speed
6 m/s (S-mode) 5 m/s (P-mode) 4 m/s (S-mode with accessories) 4 m/s (P-mode with accessories)
Max Descent Speed
Descend Vertically 5 m/s (S-mode) 4 m/s (P-mode) Tilt 7 m/s (S-mode) 4 m/s (P-mode)
Max Speed
72 kph (S-mode, without wind) 50 kph (P-mode, without wind)
Max Service Ceiling Above Sea Level
6000 m
Max Flight Time
31 min (measured while flying at 25 kph in windless conditions) 28 min (RTK module attached) 29 min (with beacon turned on) 30 min (with beacon turned off) 24 min (with spotlight turned on) 28 min (with spotlight turned off) 27 min (with speaker turned on) 28 min (with speaker turned off)
Max Wind Speed Resistance
10 m/s (scale 5)
Max Tilt Angle
35°(S-mode, with remote controller) 25°(P-mode)
Max Angular Velocity
S mode: 6 m/s P mode：5 m/s
Max Descent Speed (vertical)
200°/s (S-mode) 100°/s (P-mode)
Operating Temperature
-10° to 40° C
GNSS
GPS+GLONASS
Hovering Accuracy Range
Vertical: ± 0.1 m (with RTK) ± 0.1 m (with Vision Positioning) ± 0.5 m (with GPS Positioning) Horizontal: ± 0.1 m (with RTK) ± 0.3 m (with Vision Positioning) ± 1.5 m (with GPS Positioning)
Operating Frequency
2.400-2.4835 GHz; 5.725-5.850 GHz
Transmitter Power (EIRP)
2.400 - 2.4835 GHz FCC: ≤26 dBm； CE: ≤20 dBm； SRRC: ≤20 dBm; MIC: ≤20 dBm 5.725 - 5.850 GHz FCC: ≤26 dBm; CE: ≤14 dBm; SRRC: ≤26 dBm
Internal Storage
24 GB
M2EA Thermal Camera
Sensor
Uncooled VOx Microbolometer
Focal Length
Approx. 9mm 35 mm format equivalent: Approx. 38mm
Sensor Resolution
640×512 @30Hz
Accuracy of Thermal Temperature
Measurement: ±2℃ or ±2%, whichever is greater.
Scene Range
-40 °C to 150 °C (High Gain) -40 °C to 550 °C (Low Gain)
Digital Zoom
16 ×
Pixel Pitch
12 μm
Spectral Band
8-14 μm
Photo Format
R-JPEG
Video Format
MP4
Metering Method
Spot Meter, Area Measurement
FFC
Auto/Manual
M2EA Visual Camera
Sensor
1/2” CMOS, Effective Pixels: 48 M
Lens
FOV: 84° 35 mm format equivalent: 24 mm Aperture: f/2.8 Focus: 1 m to ∞
ISO Range
Video: 100-12800 (auto) Photos: 100-1600 (auto)
Digital Zoom
32×
Max Image Size
8000×6000
Still Photography Modes
Single shotInterval: 2/3/5/7/10/15/20/30/60 s Panorama: Sphere
Video Resolution
3840×2160@30fps 1920×1080@30fps
Photo Format
JPEG
Video Format
MP4
Gimbal
Mechanical Range
Tilt: -135°- +45° Pan: -100°- +100°
Controllable Range
Tilt: -90°- +30° Pan: -75°- +75°
Stabilization
3-axis (tilt, roll, pan)
Max control speed
120°/s
Angular Vibration Range
±0.005°
Sensing System
Sensing System
(2)
Omnidirectional Obstacle Sensing
Forward
Precision Measurement Range: 0.5 - 20 m Detectable Range: 20 - 40 m Effective Sensing Speed: ≤ 14m/s FOV: Horizontal: 40°, Vertical: 70°
Backward
Precision Measurement Range: 0.5 - 16 m Detectable Range: 16 - 32 m Effective Sensing Speed: ≤ 12m/s FOV: Horizontal: 60°, Vertical: 77°
Upward
Precision Measurement Range: 0.1-8 m
Downward
Precision Measurement Range: 0.5 -11m Detectable Range: 11-22 m
Sides
Precision Measurement Range: 0.5 - 10 m Effective Sensing Speed: ≤ 8m/s FOV: Horizontal: 80°, Vertical: 65°
Operating Environment
Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15) Upward: Detects diffuse reflective surfaces(>20%) (walls, trees, people, etc.) Downward: Surface with clear pattern and adequate lighting (lux > 15)Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)
Enterprise Smart Controller
Operating Frequency
2.4000-2.4835GHz 5.725-5.850 GHz
Max Transmitting Distance (unobstructed, free of interference)
NCC/FCC: 15 km CE/MIC: 8 km SRRC: 8 km
EIRP
2.4000-2.4835 GHz: 29.5 dBm (FCC) 18.5dBm (CE) 18.5 dBm (SRRC); 18.5dBm (MIC) 5.725-5.850 GHz: 28.5 dBm (FCC); 12.5dBm (CE) 20.5 dBm (SRRC)
External battery
Name: WB37 Intelligent Battery Capacity: 4920 mAh Voltage: 7.6V Type: LiPo Energy: 37.39Wh Charging time (using BS60 Intelligent Battery Station): 70 minutes (15°C to 45°C); 130 minutes (0°C to 15°C)
Built-in battery
Type: 18650 lithium ion battery (5000 mAh @ 7.2 V) Charging: Use a USB charger with specification of 12V / 2A Rated power: 17 W Charging time: 2 hours and 15 minutes (Using a USB charger with specification of 12V / 2A)
Battery Life
Built-in battery: Approx. 2.5h Built-in battery+External battery: Approx. 4.5h
USB Power Supply
5 V / 1.5 A
Operating Temperature
-20°C to 40°C (-4 °F to 104 °F)
Intelligent Flight Battery
Capacity
3850 mAh
Voltage
15.4V
Max Charging Voltage
17.6V
Battery Type
LiPo
Energy
59.29 Wh
Net Weight
297g
Charging Temperature
5℃ - 40℃
Operating Temperature Range:
-10℃ - 40℃
Heating Methods:
Manual Heating, Auto Heating
Heating Temperature
-20℃ - 6℃
Heating duration
500s (Max)
Heating Power
55W (Max)
Charging Time
90 mins
Max Charging Power
80W
RTK Module
Dimensions
69 mm x 69 mm x 59mm
Connections
Micro USB Port
RTK Positioning Precision
In RTK FIX 1cm+1ppm (Horizontal) 1.5cm+1 ppm (Vertical)
M2EA Spotlight
Dimensions
68×60×41mm
Connections
Micro USB Port
Operating Range
30 m
Power
Max 26W
Illuminance
FOV17°, Max: 11lux @ 30m Straight
M2EA Beacon
Dimensions
68mm×40mm×27.8mm
Controllable Range
5000 m
Connections
Micro USB Port
Power
Max 26W
Light intensity
Min Angle: 55 cd; Light intensity: 157cd
M2EA Speaker
Dimensions
68×55×65 mm
Connections
Micro USB Port
Decibel
100 db @ 1 meter distance
Power
Max 26W
Max Bitrate
16kbps
SD Cards
Supported SD Cards
Micro SD™ Supports a microSD with capacity of up to 128 GB. A UHS-I Speed Grade 3 rating microSD card is required.
APP / Live View
Video Transmission System
OcuSync 2.0
Mobile App
DJI PILOT(Android Version)
Live View Quality
Remote Controller: 720p@30fps / 1080p@30fps
Max Live View Bitrate
40Mbps
Latency
120 - 130 ms
Required Operating System
ios 10.0 or later Android 5.0 or later
Notes
(1) The accuracy of the temperature measurement is measured at a distance of 5m against a blackbody with an emissivity of 0.95 under ideal conditions. The actual accuracy is also affected by various environmental factors such as temperature and humidity, and needs to be corrected by post-processing software. Under ideal conditions, the temperature accuracy can reach ±2℃ or ±2%, whichever is greater.
(2) Omnidirectional Obstacle Sensing includes left/right, up/down, and forward/backward obstacle sensing. Sensing for left/right directions is only available in Tripod Mode. Omnidirectional Obstacle Sensing does not fully cover the circumference of a 360-degree arc. And left and right obstacle sensing system only works in specific modes and environments. DJI warranty does not cover any loss caused by crashing when flying left or right, even when Tripod mode is activated. Please be aware of your surroundings and App notifications when operating the Mavic 2 to ensure safety.
Capture accurate details in any mission with the Mavic 2 Enterprise Advanced
A highly versatile yet compact tool
Learn About The Mavic 2 Enterprise Advanced
Watch our Mavic 2 Enterprise Advanced unboxing video for details
Watch Now
